Smart-Q Laser Nd-Yag Machine
Smart-Q Nd:YAG Laser is an Nd:YAG laser system combining Q-Switched and Long-Pulsed technologies, supporting a wide range of applications in pigmentation treatment and aesthetic skin care. The system features two standard wavelengths, 532nm and 1064nm, with additional 755nm, 650nm, and 595nm wavelength options available through optional treatment handpieces, expanding its versatility across dermatological and aesthetic procedures. Smart-Q can be used for pigmentation concerns, tattoo removal, skin rejuvenation, acne treatment support, skin tightening, and hair removal.
Overview
Smart-Q Nd:YAG Laser is an Nd:YAG laser system combining Q-Switched and Long-Pulsed technologies, supporting a wide range of applications in pigmentation treatment and aesthetic skin care. The system features two standard wavelengths, 532nm and 1064nm, with additional 755nm, 650nm, and 595nm wavelength options available through optional treatment handpieces, expanding its versatility across dermatological and aesthetic procedures. Smart-Q can be used for pigmentation concerns, tattoo removal, skin rejuvenation, acne treatment support, skin tightening, and hair removal.
Key Features
Q-Switched & Long-Pulsed Nd:YAG
Combines Q-Switched and Long-Pulsed Nd:YAG technologies to support a wide range of pigmentation treatments and aesthetic skin care applications.
Multiple Wavelengths – Expanded Versatility
Features two standard wavelengths, 532nm and 1064nm, with additional 755nm, 650nm, and 595nm wavelength options, expanding its versatility across a variety of treatment applications.
Multiple Flexible Laser Modes
Supports 532nm Single, 1064nm Single, 1064nm PTP, Long, and FFP modes, allowing operators to select the appropriate laser delivery mode for different treatment objectives.
Flexible Treatment Parameter Adjustment
Allows direct adjustment of Energy, Frequency, and Spot Size through the control screen. The Spot Size can be selected from 2–10mm, providing flexible parameter control for different treatment protocols.
Water Circulation Cooling System
The water circulation cooling system helps maintain stable operating conditions during use.
Intuitive Touchscreen Control
The LCD touchscreen provides convenient and intuitive control for adjusting treatment parameters during operation.
Technology / Working Principle

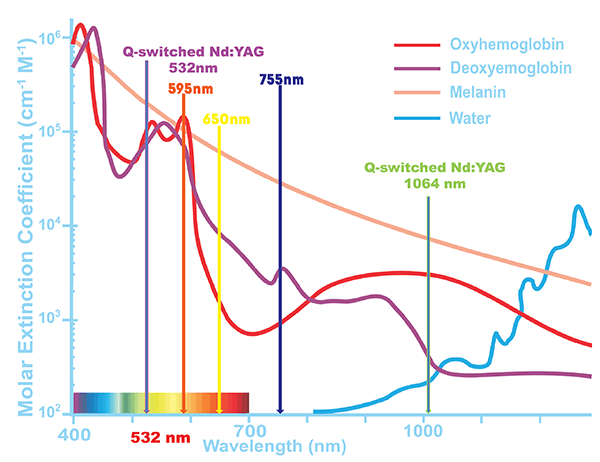

Nd:YAG Technology with 532nm and 1064nm Wavelengths
Smart-Q uses Nd:YAG technology with two standard wavelengths, 532nm and 1064nm, supporting a wide range of pigmentation treatments, tattoo removal, and aesthetic skin care procedures.

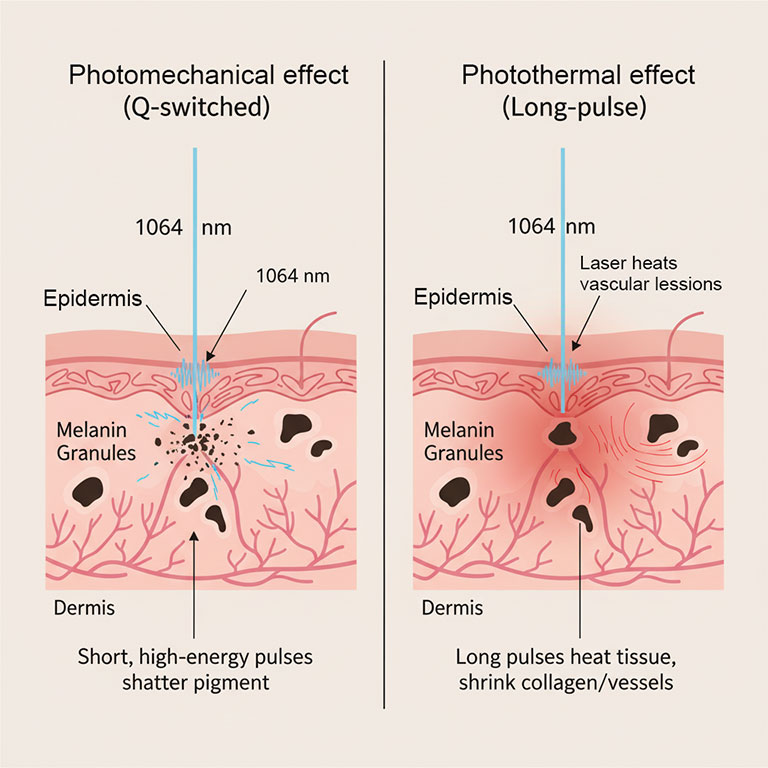

Q-Switched & Long-Pulsed Nd:YAG – Dual Laser Delivery Mechanisms
Smart-Q combines Q-Switched and Long-Pulsed Nd:YAG technologies, allowing the appropriate laser delivery mode to be selected for different treatment objectives. Q-Switched delivers short, high-energy laser pulses to support pigmentation treatments, while Long-Pulsed Nd:YAG uses longer pulses to expand applications such as improving skin firmness and elasticity, supporting acne treatment, and hair removal. The system supports 532nm Single, 1064nm Single, 1064nm PTP, Long, and FFP modes.

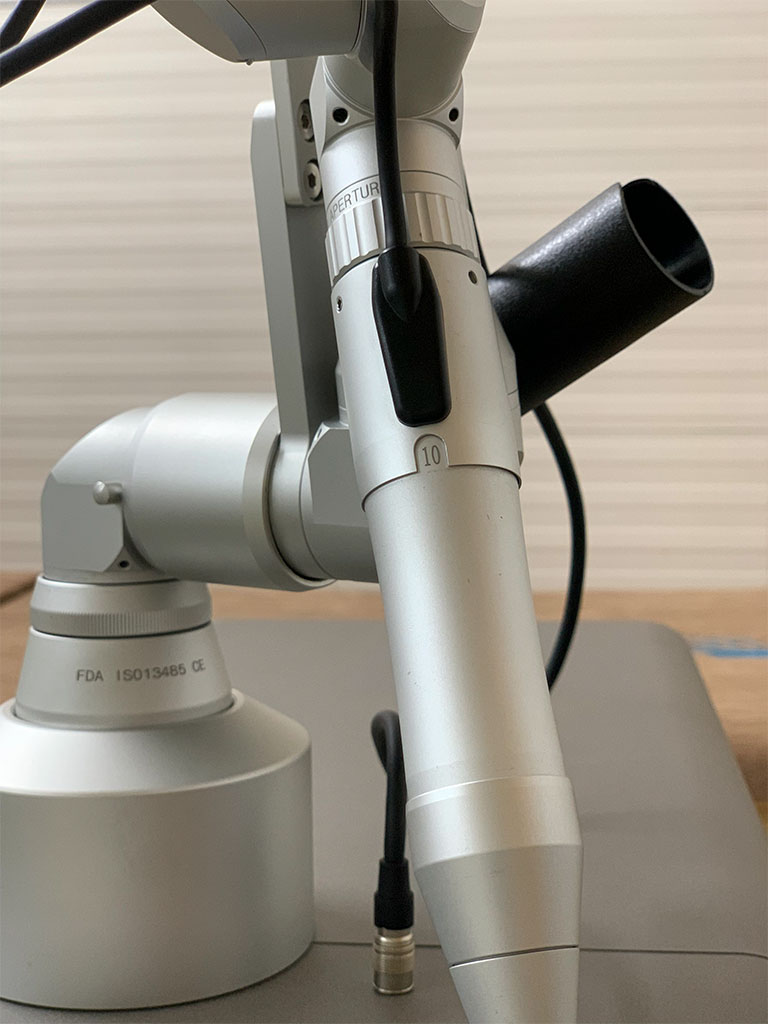

Flexible Energy and Spot Size Adjustment
Smart-Q allows direct adjustment of Energy, Frequency, and Spot Size through the control interface. With a 2–10mm Spot Size range, operators can select an appropriate treatment spot according to each procedure.
PTP & FFP – Flexible Laser Delivery Options
The 1064nm PTP and FFP modes provide additional laser delivery options, giving operators greater flexibility when configuring different treatment protocols.
Specifications
Applications
Skin Pigmentation Treatment
Uses Q-Switched Nd:YAG technology with 532nm and 1064nm wavelengths to support the improvement of pigmentation concerns such as melasma, freckles, age spots, and hyperpigmentation.
Tattoo Removal
Uses Q-Switched Nd:YAG technology with 532nm and 1064nm wavelengths to support tattoo pigment removal. Additional 755nm, 650nm, and 595nm wavelength options further expand treatment versatility for different tattoo ink colors.
Skin Rejuvenation & Skin Quality Improvement
Uses Nd:YAG laser technology in skin rejuvenation treatments to support improved skin firmness, elasticity, and overall skin quality.
Q-Toning – Pigmentation Improvement & Skin Brightening
Uses the Q-Toning mode at 1064nm to support pigmentation improvement and a brighter, more even-looking complexion.
Pigmented Lesion Treatment
Supports the treatment of various pigmented lesions, including Nevus of Ota, ABNOM, lentigines, cafe-au-lait spots, age spots, and post-inflammatory hyperpigmentation (PIH).
Acne Treatment Support
Uses Long-Pulsed Nd:YAG technology to help shorten treatment time while supporting treatment effectiveness.
Hair Removal
Uses Long-Pulsed Nd:YAG technology for hair removal treatments, expanding Smart-Q’s versatility in aesthetic dermatology and skin care.
Benefits / Why Choose This Device
-
One Device, Multiple Treatments
Q-Switched & Long-Pulsed Nd:YAG technologies with multiple wavelength options expand the range of aesthetic treatments available on a single system.
-
Flexible Treatment, Easy Protocol Configuration
Adjustable Energy, Frequency, and Spot Size, combined with multiple laser delivery modes, provide flexibility for different treatment objectives.
-
Optimized Operational Efficiency
5 parameter memory slots, an intuitive touchscreen, and a water circulation cooling system support convenient and stable operation.
FAQ
Smart-Q uses two standard wavelengths, 532nm and 1064nm, with additional 755nm, 650nm, and 595nm options available with corresponding treatment handpieces, expanding its applications in pigmentation treatment, tattoo removal, and aesthetic skin care.
Smart-Q can be used for a wide range of treatments, including pigmentation treatment, tattoo removal, Q-Toning, skin rejuvenation, acne treatment support, and hair removal, helping aesthetic clinics diversify their services with a single system.
Smart-Q supports 532nm Single, 1064nm Single, 1064nm PTP, Long, and FFP modes, allowing the appropriate laser delivery mode to be selected for different treatment objectives.
Yes. Smart-Q uses Long-Pulsed Nd:YAG technology for hair removal procedures, helping to shorten treatment time while enhancing treatment effectiveness.
Yes. Q-Switched Nd:YAG technology with different wavelength options expands the system's application in treating various tattoo ink pigments.
The system uses a water circulation cooling system, combined with protection and alert mechanisms during operation.
Smart-Q is manufactured in South Korea.
